Time Required: 5 hours (approximately)
Skill Level: Expert - It's not recommended that you attempt this installation unless you're an experienced Technician.
Mustang 1979-1993 GT
Mustang 1979-1993 LX
Mustang 1994-1995 GT
Mustang 1994-1998 V6
Mustang 1996-1998 Cobra
Mustang 1996-1998 GT
Mustang 1999-2001 Cobra
Mustang 1999-2004 GT
Mustang 1999-2004 V6
Mustang 2003-2004 Cobra
Mustang 2003-2004 Mach 1
Whether you Mustang only gets driven to the grocery store or driven hard on the road course or drag strip, every 79-2004 Mustang needs subframe connectors! Steeda's full length subframe connectors are the best full length subframe connectors available for your 1979-2004 Mustang. Perfect for daily drivers, or serious cars with high horsepower, sticky tires or competition suspension.
Not only will Steeda full length subframe connectors provide unmatched strength, but will save you time in installation over other brands!

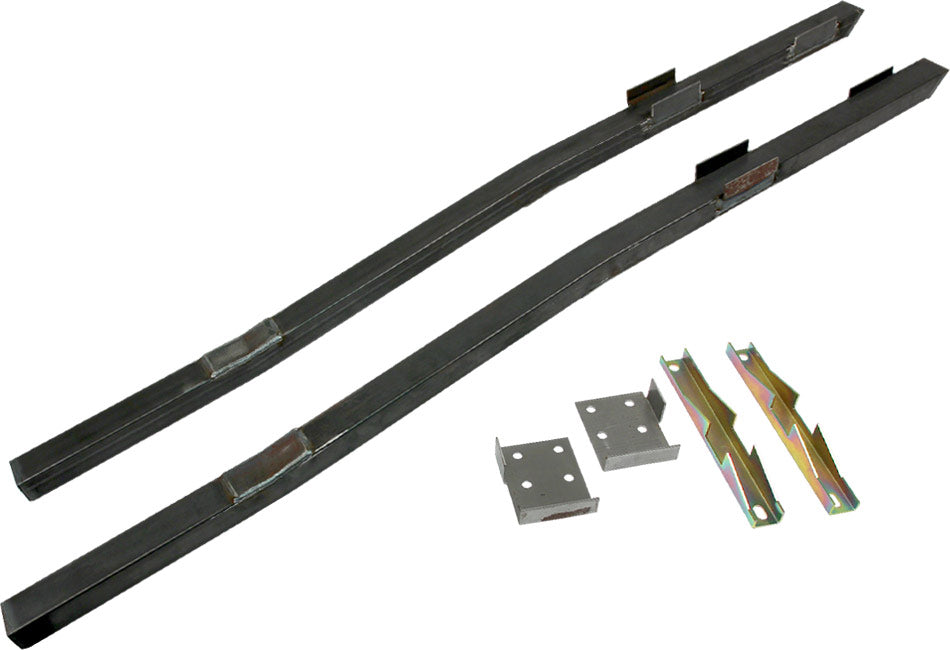

Steeda starts with beefy 1.5 x 2 x .083 square tubing that spans the full length of the floor pan providing unmatched chassis rigidity, improved handling, and improved ride quality with reduced impact harshness. Our full length subframes are reinforced at each bend and include Steeda's exclusive torque box reinforcing plate for the strongest attachment possible to the rear subframe for maximum effectiveness. Steeda Full length subframe connectors also feature a one-piece reinforced seat bolt cross brace. Some subframe cross braces have 8 individual gussets which must be carefully positioned and welded on. Other other kits use no reinforcements at all in their cross braces. Steeda's cross braces have reinforcing gussets built-in, for greater strength with less welding. Other full length subframe connector designs do not attach all the mounting point plates to the connector, leaving you to weld them during installation adding time and complexity
. Steeda full length subframe connectors come with all mounting point tabs pre-welded to the subframe connector. Another Steeda exclusive. Full-length subframe connectors are available in bare steel or black powdercoated finishes. The black powdercoat can be scraped and welded over, and then only the weld joints need to be spray-painted vs. the whole kit needing to be spray-painted
Note: 1996-98 Mustang Cobras will require modifications to the transmission crossmember mounting points. Contact us for further details.
*Heavy/oversized item may require additional shipping cost*
