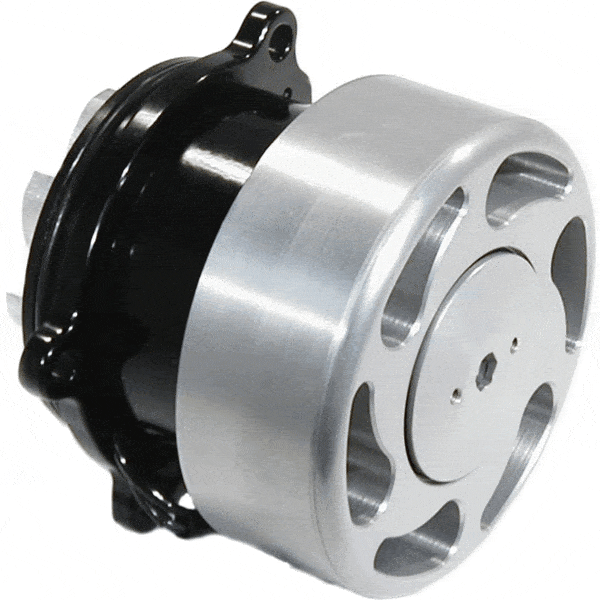

Electric Water pump

By: Meziere Enterprises

#WP346S

    • Flows 55 gph
    • Idler Style
    • Allows you to retain factory belt routing
    • Time Required: 2.5 hours (approximately)

    • Skill Level: Intermediate - You should have "above average" mechanical knowledge/experience to attempt this installation.

    • Mustang 1996-1998 Cobra

    • Mustang 1999-2001 Cobra

    • Mustang 1999-2004 GT

    • Mustang 2003-2004 Cobra

    • Mustang 2003-2004 Mach 1

    • Mustang 2005-2009 GT

    • Mustang 2010 GT

Add to Wishlist

Innovative design makes for an easy installation. Unbolt your factory pump and bolt on an easy 11-14 horsepower with our street style water pump. An idler is incorporated onto the pump so your belt routing remains in its stock configuration. American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims.

Our 300 series pumps move more water and produce more pressure than any other electric pump on the market. That means better protection for your high horsepower, high demand engine! Our 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value! This water pump model features:

  • Fits Ford modular engines
  • Idler design lets you keep all of your serpentine belt driven accessories
  • Suitable for street or drag strip use - 3000+ hour life expectancy
  • Show quality black finish - clear anodized pulley
  • Standard motor provides 55 gallons per minute free flow rating
  • Stainless steel large diameter main shaft with high performance ceramic seal

Technical Specifications:

Finishing The System: This pump is supplied complete. No additional items should be necessary. If you are installing the pump into a stock type vehicle you may want to consider relay kit #WIK346

  • Amperage draw: Under normal use the pump will draw 11-12 amps.
  • Overall Height Dimension: The standard pump is 3.75" long from the mounting surface to the tip of the pump.
  • Pump Weight: This application weighs 6.9 lbs.
  • 16 volt systems: When purchasing a pump for a 16 volt system we recommend the 16 volt optional motor on our pump. The 12 volt pump will work for limited use applications.
Accessories for Ford Modular:Relay Wiring Kit upgrade WIK346
