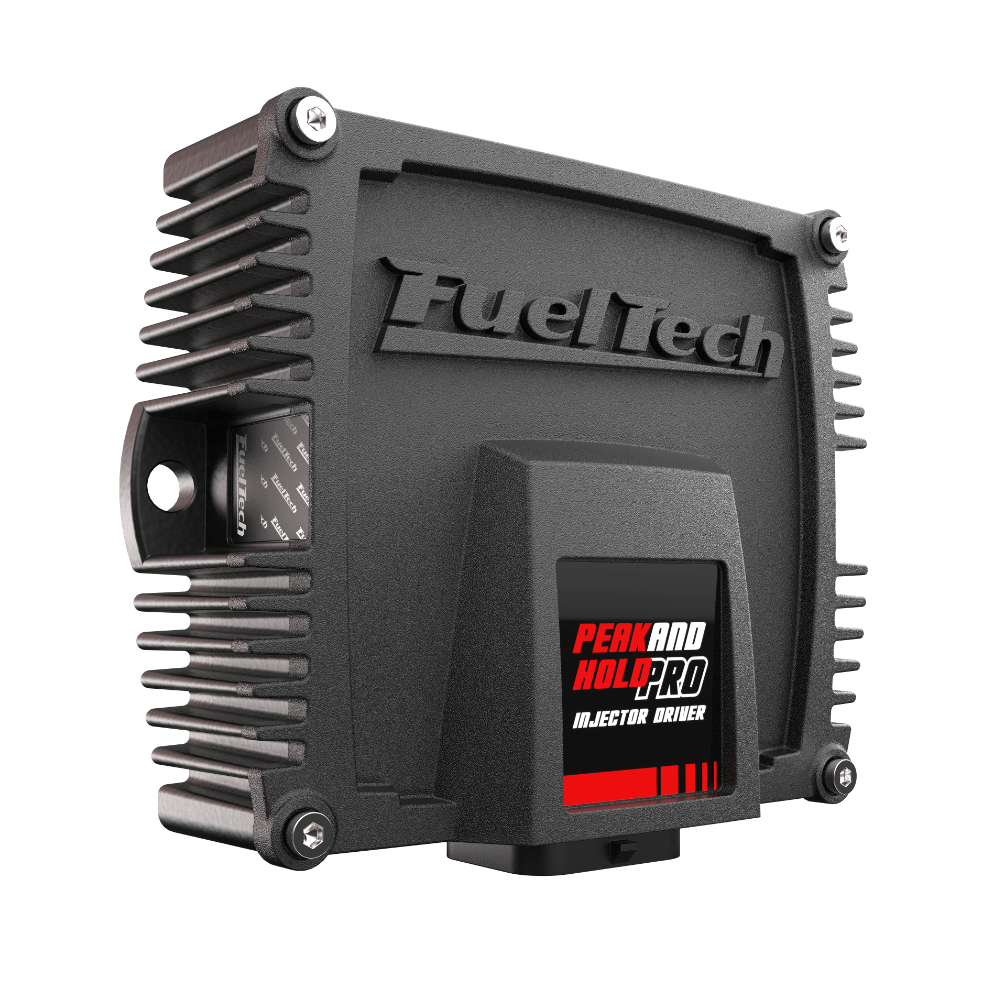

Peak & Hold PRO Injector Driver

By: FuelTech


Add to Wishlist



    Peak and Hold PRO Injector Driver is an advanced module designed to control low impedance injectors at a professional level, featuring 8 channels, 26-way automotive connector and several motor protections levels in case an injector or connection fails.

    In general, racing high-flow injectors use low impedance internal coils (with less than 7 Ohms resistance). That allows them to have a much shorter response time than a high impedance injector.

    These lower impedance coils require a current control, starting with a higher current at opening stage (peak) and lower current when opened (hold), otherwise the injector can quickly warm up and burn.

    With PRO Injector Driver it is possible to apply a higher initial current, allowing quick opening of the injector and then reduce the current to, in general, 1⁄4 the peak current.

    Therefore, reducing injector’s deadtime (time between the injector gets energized and effectively sprays fuel).



    • 8 channels
    • 2 to 12 Amps (Software selected current, by channel)
    • 0.5 to 3 Amps (Software selected current, by channel)
    • Automotive connector
    • Internal temperature sensor
    • Fault diagnosis (CAN)
    • Protection against high temperature
    • Output for activating the injectors relay
    • Aluminum case
    • Allows firmware update through CAN
    • Standalone
    • Dimension: 3.54” x 1.77” x: 4.5”
    • Material: Anodized Aluminum and Plastic
    • Warranty: Worldwide 1 year
