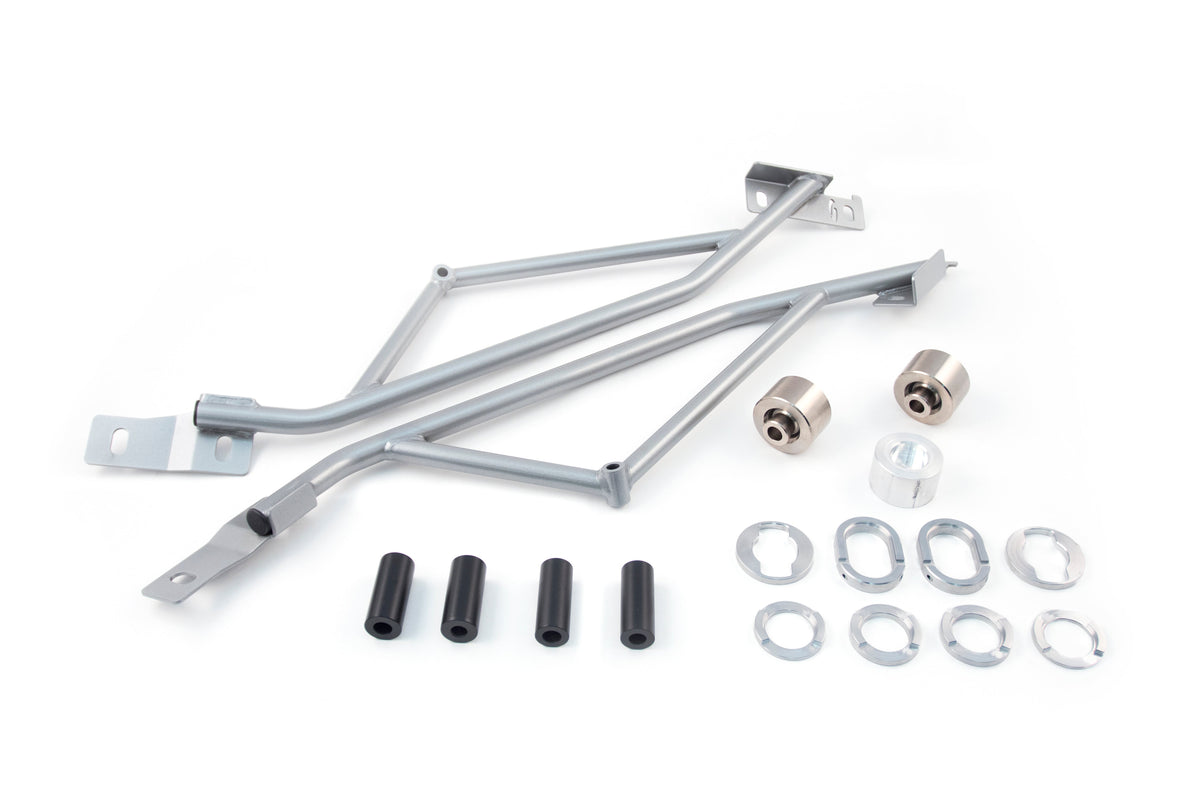

First is our Alignment dowel kit. This fills the factory bolt hole voids with CNC machined delrin inserts that will square up the rear subframe to the chassis. By filling these voids we are also limiting the side to side and front to back movement of the subframe that is present under hard acceleration and braking.
Second is our tried and true IRS Subframe Bushing Support System. This 8 piece kit was a first of it's kind in the performance aftermarket and so innovative and popular we patented it's design! Made in house from billet 6061 aluminum and featuring stainless steel hardware, this kit fills all the factory voids in the IRS subframe mounting locations. It's job is to prevent up and down movements of the subframe.
Third to this kit is the strongest support brace for the S550 IRS on the market! Made in house from chromoly steel, this brace is designed to support the factory subframe by directly tying it into the chassis at key mounting locations. Using factory mounting locations on the factory frame, this 5-point brace supports the front factory mount and the lower control arm mount as well. A simple bolt in design this brace ties the subframe to the chassis in the best possible way.
Fourth are our Rear Lower Control Arm Spherical Bearings. These eliminate the factory deflection that can cause up to 2 degrees of inward toe upon acceleration, and improve chassis responsiveness. If you drag race your GT, EcoBoost or V6 Mustang, our spherical bearings for the rear lower control arm will assist tires hooking immediately upon acceleration.
*Large/oversized item, may require additional shipping cost*
